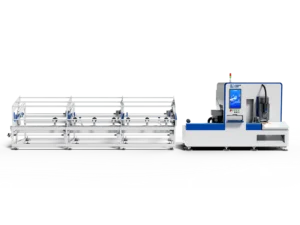

LX-T9

Bevel cutting laser tube cutting machine

Bevel cutting

45° Bevel cutting. Suitable for cutting various pipe materials, including round pipes, square pipes, and rectangular pipes.

Industry-Leading Bed Manufacturing Technology

The machine tool adopts an open mechanical structure with a frame, and the crossbeam and bed body are processed as a whole. The equipment has high accuracy, good rigidity, and runs smoothly; At the same time, it has a compact structure, a small footprint, convenient operation and maintenance.

Full-Stroke Pneumatic Chuck

A single tube can bear a weight of 75kg, with a repeated positioning accuracy of 0.05mm and a maximum speed of 150r/min. The front chuck is a fixed installation method and cannot be moved.

Excellent Performance

Mampu memotong berbagai jenis pipa: pipa bulat, pipa persegi, pipa persegi panjang, baja kanal, baja siku, dan balok-I. Cocok untuk berbagai industri pengolahan pipa.

Parameter Teknis

Model
LX-T9
Kekuatan Laser
1500~3000w
Laser wavelength
1070 nm
Minimum line width
≤0.15mm
Cooling mode
water cooling
Akselerasi
1.5G
Diameter Pemotongan Tabung Bulat
Φ20-90mm
Memotong Diameter Tabung Persegi
▢15 * 15-60 * 60mm
X-axis
100mm
B-axis
360° (infinite rotation)
Z-axis
80mm
Y-axis
800mm
Hole position accuracy
±0.15mm
Groove position accuracy
±0.25mm
Dimensi (P * L * T)
2450*1530*2000mm
Berat
≈1.2T
Jenis Tabung Pemotong
Tabung Bulat / Tabung Persegi
Bahan Pemotongan
baja tahan karat,
baja karbon, aluminium, tembaga, besi
Tail length
Bevel cutting: >260mm
Vertical cutting: >160mm
