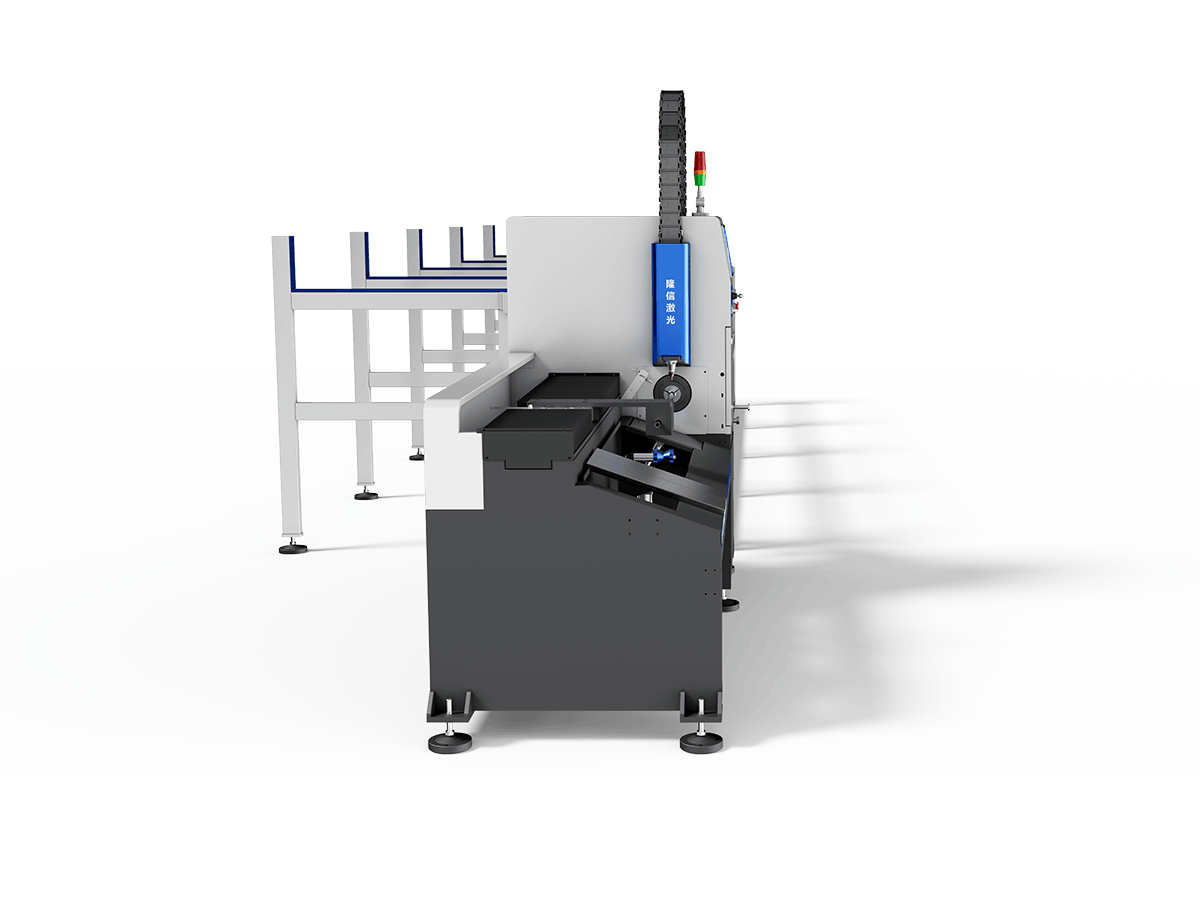

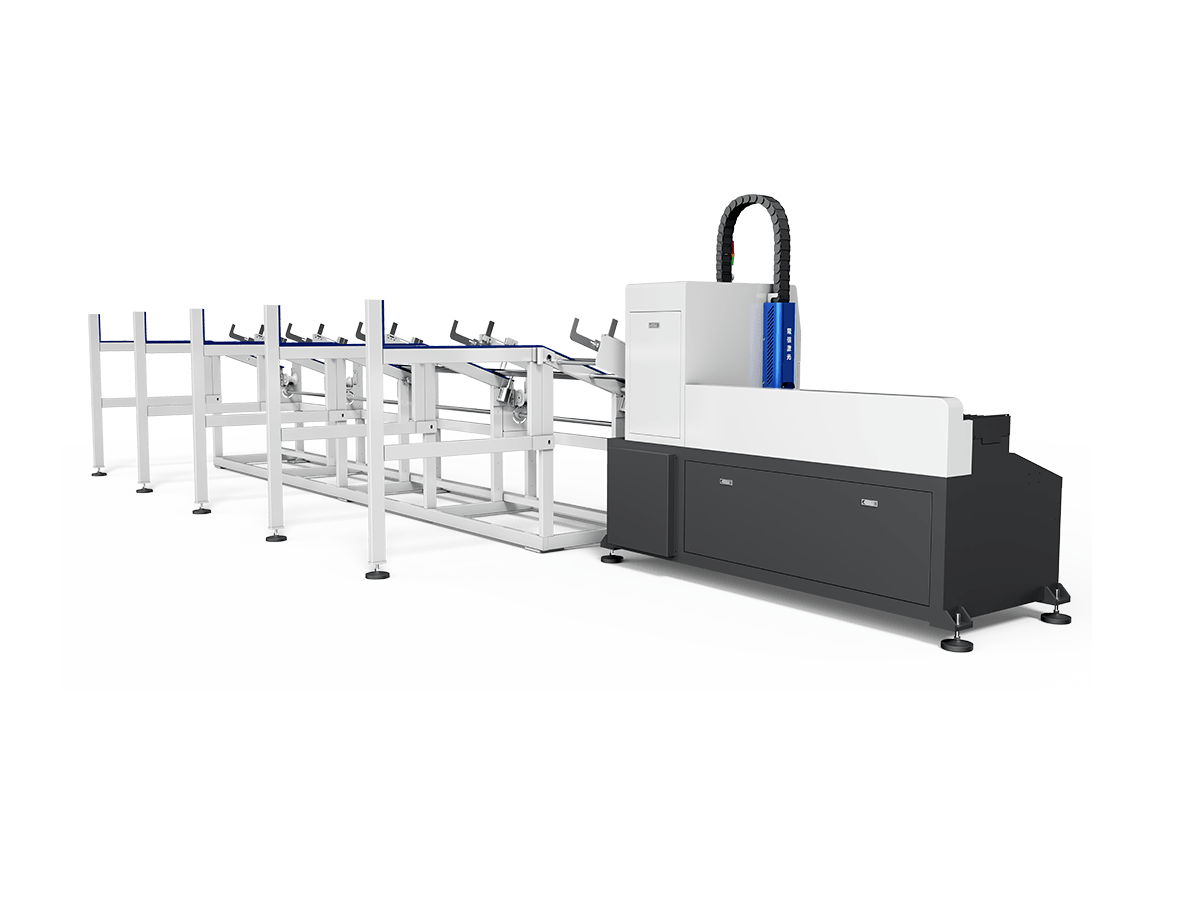

Automatic Round Tube Laser Cutting Machine
LX-GL40/70/90
Designed for fast and automatic cutting of small-diameter metal tubes, the LX-GL series covers Ø10–85 mm round tubes with automatic loading and high-speed feeding.
Laser Power
1.5–3 kW
Round Tube
Ø10–40 / 65 / 85 mm
Tube Length
Max. 6200 mm
Acceleration
1.5G
Product Features
High-Speed Round Tube Laser Cutting
1.5G acceleration and maximum 138m/min feeding speed, allows one machine to handle large-scale production tasks with ease.
Anti-spatter Function
Servo anti-spatter function keeps the inner wall clean and without slag.
Intelligent Control for Easier Operation
The LONX control system integrates tube feeding, positioning and laser cutting into one workflow, helping simplify daily operation and reduce the amount of manual intervention required.

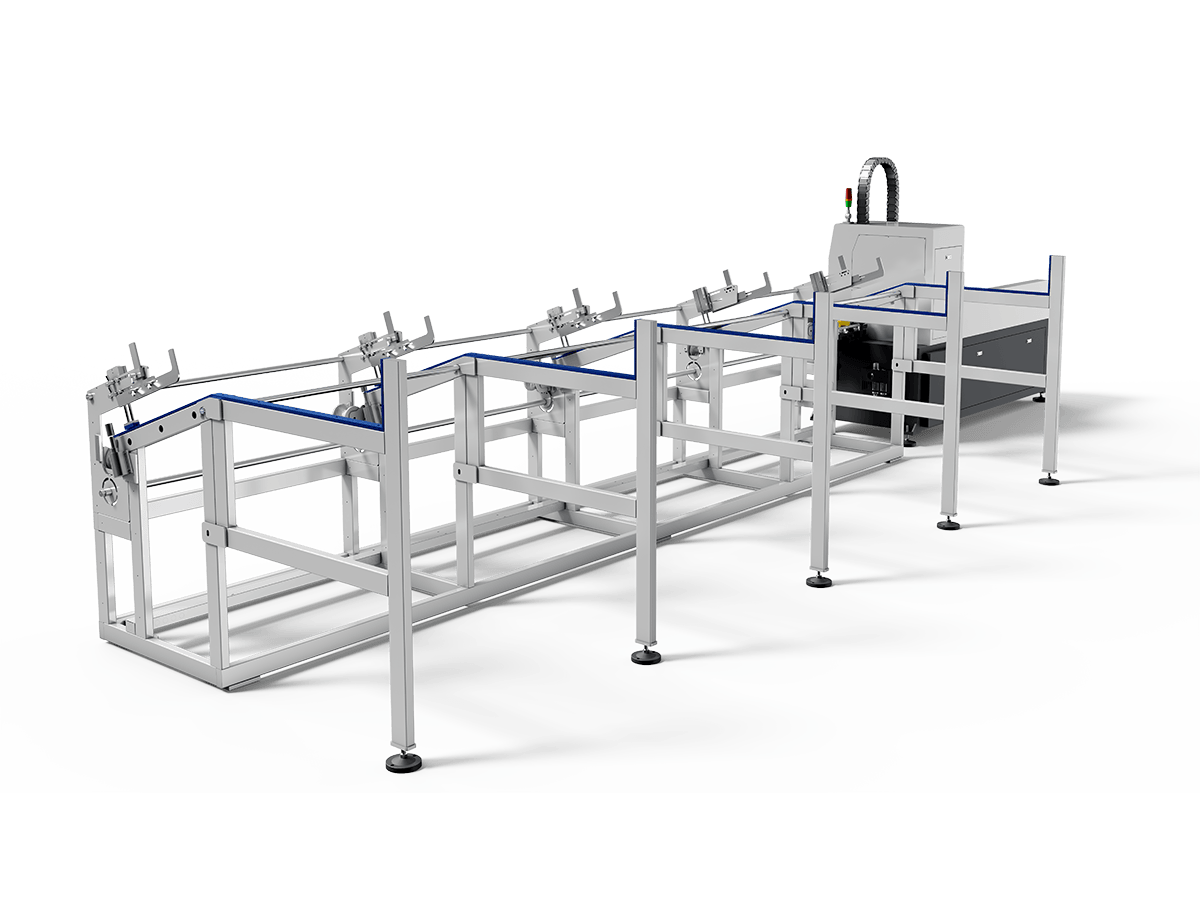

Automatic Loading for Less Manual Work
The automatic loading system can handle raw tubes from 3.5 to 6.2 m and up to 1 ton per loading cycle, reducing repetitive manual feeding and keeping production running more continuously.
Precision Chuck for Stable Clamping
The precision pneumatic chuck securely holds the round tube during cutting and rotation, helping reduce tube movement and maintain more consistent cutting results throughout production.
High-Rigidity Machine Bed
The rigid welded machine bed helps reduce vibration during high-speed movement and tube rotation, providing a more stable cutting process and supporting long-term mechanical accuracy.
100 m/min Feeding Speed
With a maximum feeding speed of 100 m/min, the machine moves tubes quickly between cutting operations, helping reduce non-cutting time and increase overall production efficiency.
Precision Cutting with Less Material Waste
With ±0.03 mm/m positioning accuracy and a minimum tail material length of 40 mm, the machine delivers consistent tube positioning while helping you make better use of every raw tube
Stable Tube Rotation
The high-precision spindle and servo-driven rotation system keep the tube moving smoothly during cutting, helping maintain consistent results when processing detailed holes, slots and contours.
Fiber Laser Cutting Head for Easy Maintenance
The sealed optical structure helps protect internal components from dust, while motorized focusing and easy-access protective lens replacement make daily maintenance simpler and more convenient.
Stable Transmission for High-Speed Cutting
Precision guideways, rack-and-pinion transmission and servo-driven motion work together to keep tube movement smooth and accurate, helping maintain stable performance during continuous high-speed cutting.
Machine Configurator
Cutting Samples
Technical Parameters
- Model:
- Laser power:
- Cutting Diameter Of Round Tube:
- Cutting Diameter Of Square Tube:
- Cutting Tube length:
- Accuracy Of Processing:
- Dimensions:
- Weight:
- Cutting Tube Type:
- Cutting Material:
Compare All LONX Tube Laser Cutting Machines
Get the complete catalogue with models, specifications and configurations.
Download CatalogAppliactions
Fitness Equipment
Produce precise tubular frames and components for treadmills, strength machines, exercise bikes and other fitness equipment.
Medical Equipment
Tube laser cutting for medical carts, hospital beds, wheelchairs, rehabilitation equipment, and other tubular medical equipment.
Motorcycle Parts
Bevel and contour cutting for lightweight tubular frames and precision connection points.
Metal Furniture
Cut tubes and profiles efficiently for tables, chairs, shelving, bed frames and other metal furniture structures.
Bicycle Components
Laser cutting for bicycle frames, handlebars, forks, seat posts, and other tubular components.
Lighting Equipment
For lighting poles, lamp arms, frames, brackets, and other tubular lighting components.
