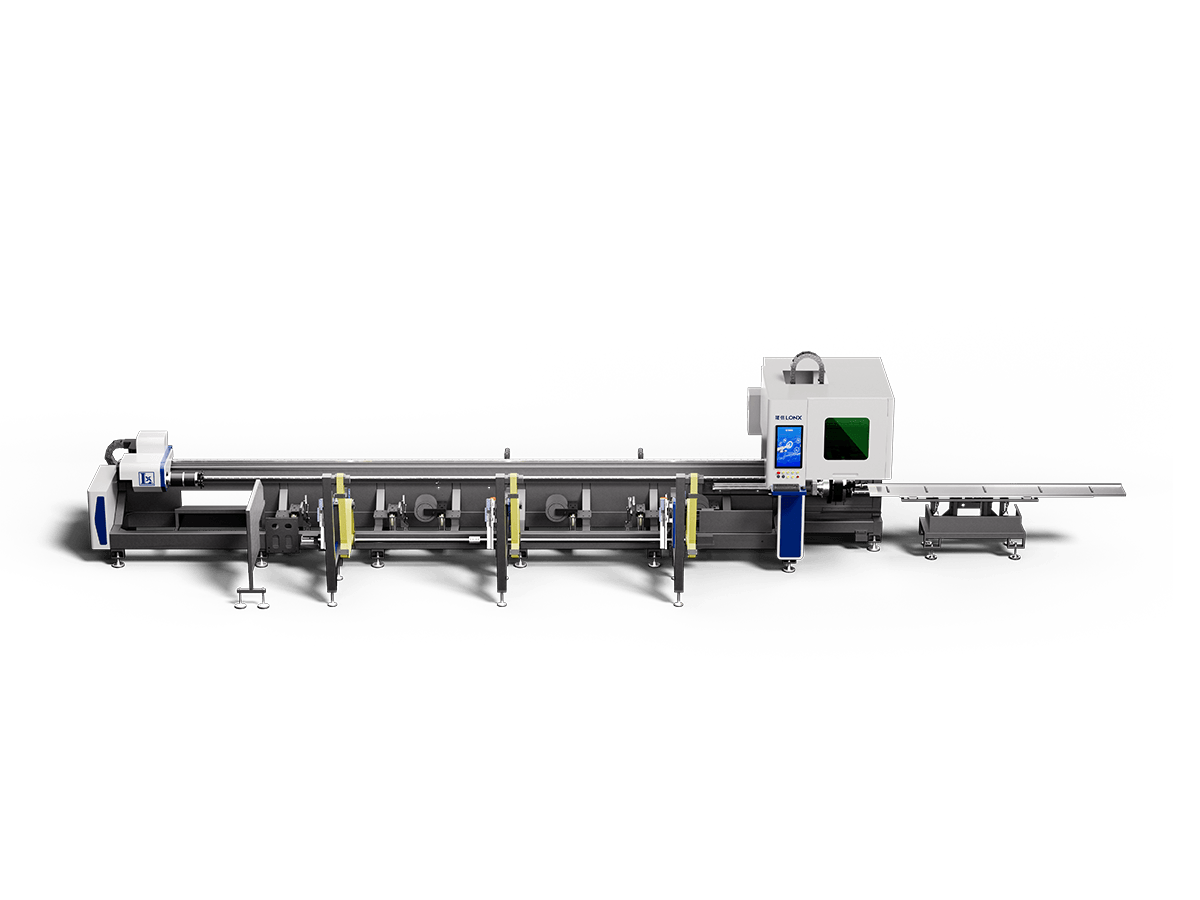

High-Speed Laser Tube Cutting Machine
LX-K19
- Versatile performance that handles all small to medium-diameter tubes seamlessly.
- 1.8-ton loading capacity with rock-solid stability for all tube types.
- 1.5G peak motion acceleration, ultra-precision with full-system performance enhancement.
Laser Power
1.5–6 kW
Round Tube
Φ15–180 mm (0.6"–7.1")
Square Tube
□15×15–180×180 mm (0.6"×0.6"–7.1"×7.1")
Tube Length
4500–6500 mm (14.8–21.3 ft)
Product Features
Higher Efficiency
Cuts tubes with diameters from 20mm to 180mm, equipped with 1.5G acceleration and 150m/min travel speed. Achieves lightning-fast cutting for small tubes and no speed reduction for large tubes, doubling production capacity.
Greater Stability
Features a 190mm full-stroke chuck system with a repeat positioning accuracy of ±0.05mm, ensuring stable processing of all types of tubes, including large-diameter and thin-walled tubes. No vibration when cutting thin-walled tubes, no deviation when cutting thick-walled tubes, significantly improving the yield rate.
High Load Capacity
1.8-ton patented fully automatic loading system greatly reduces manual intervention and labor costs, helping customers take a step closer to unmanned workshop production.
Maximum Material Savings
The front chuck avoidance function reduces tail length to just 30 mm, minimizing material waste and significantly lowering costs.
Machine Configurator

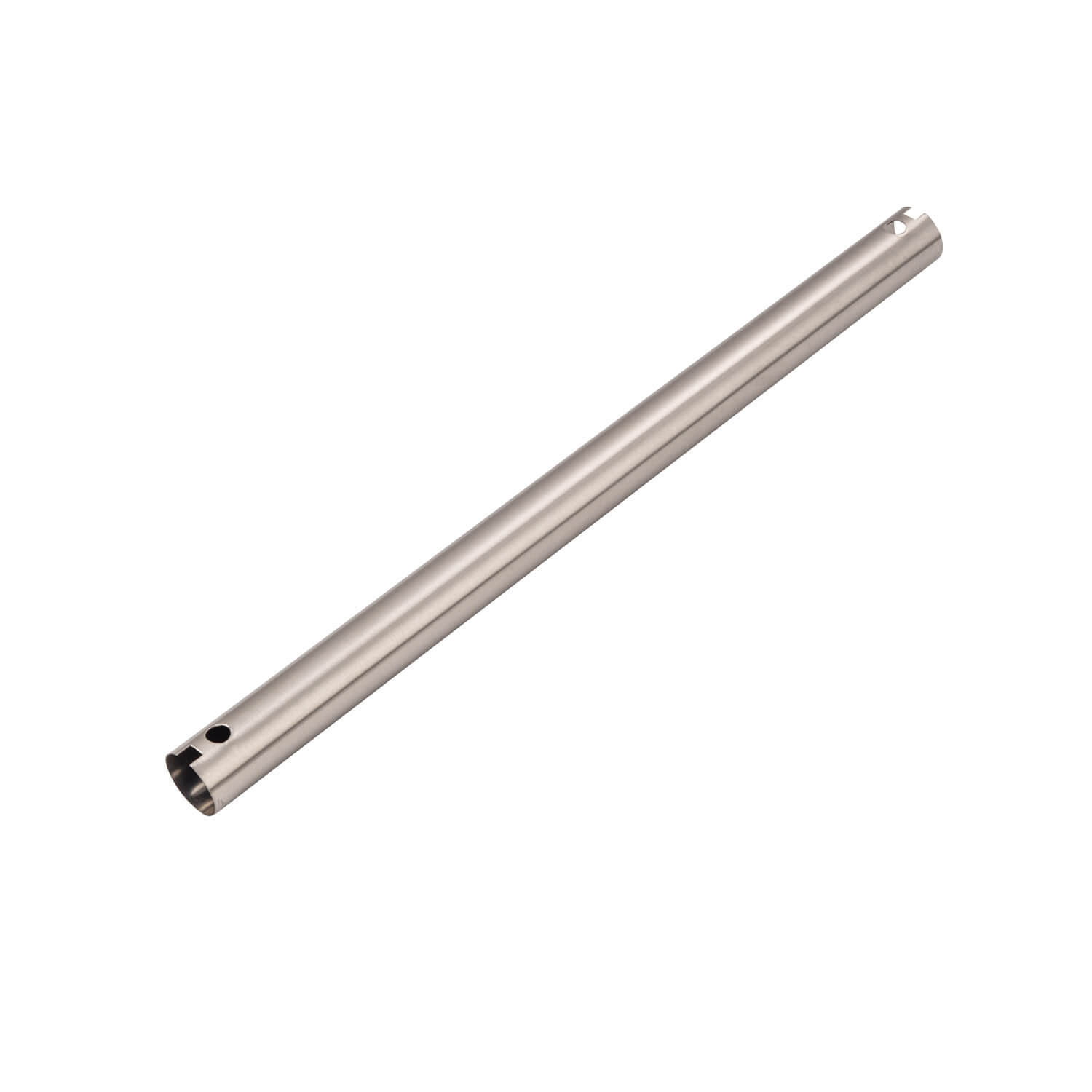

Cutting Samples
Technical Parameters
- Model:
- Laser power:
- Cutting Diameter Of Round Tube:
- Cutting Diameter Of Square Tube:
- Cutting Tube length:
- Accuracy Of Processing:
- Dimensions:
- Weight:
- Cutting Tube Type:
- Cutting Material:
Compare All LONX Tube Laser Cutting Machines
Get the complete catalogue with models, specifications and configurations.
Download CatalogAppliactions
Fitness Equipment
Produce precise tubular frames and components for treadmills, strength machines, exercise bikes and other fitness equipment.
Auto Parts
Produce tube and profile components for vehicle frames, chassis structures, exhaust systems and other automotive applications.
Metal Furniture
Cut tubes and profiles efficiently for tables, chairs, shelving, bed frames and other metal furniture structures.
Agricultural Machinery
Process tubes and profiles for tractor frames, harvesters, implements and other agricultural machinery components.
Industrial Equipment
Cut tubes and profiles for machine frames, equipment structures, guards, conveyors and other industrial components.
Industrial Vehicles
For forklift frames, material-handling equipment, utility vehicle structures, and tubular support components.
