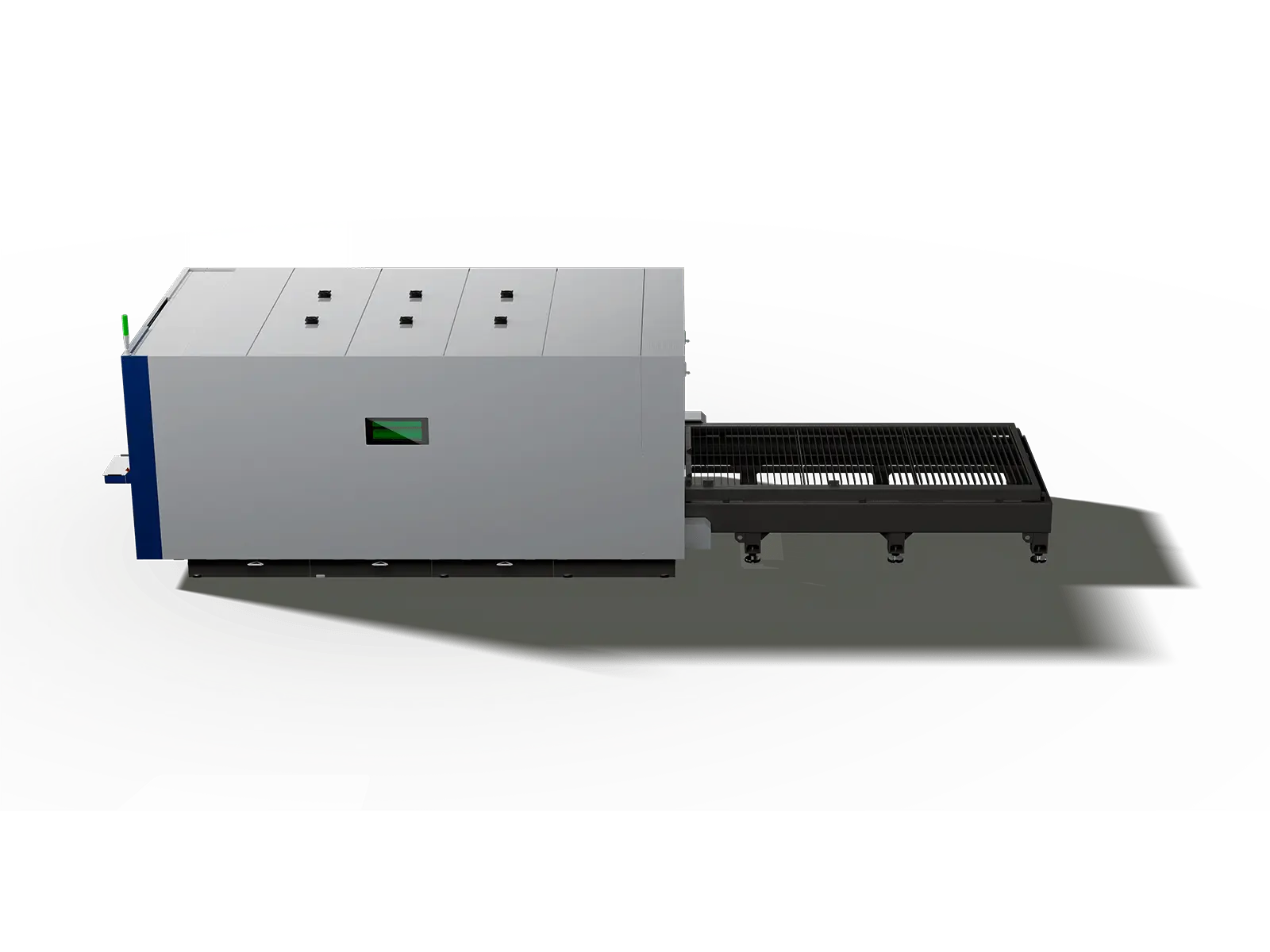

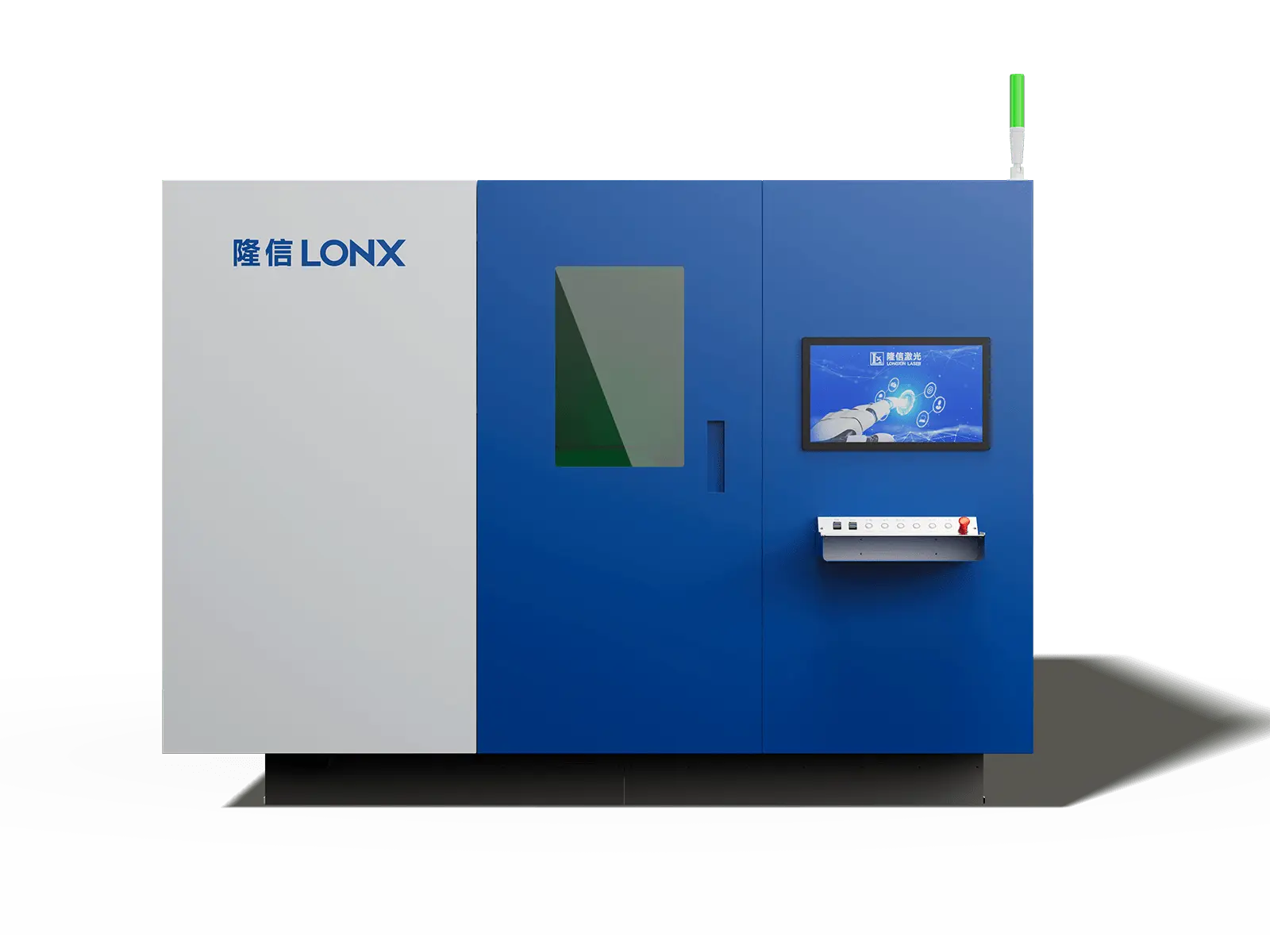

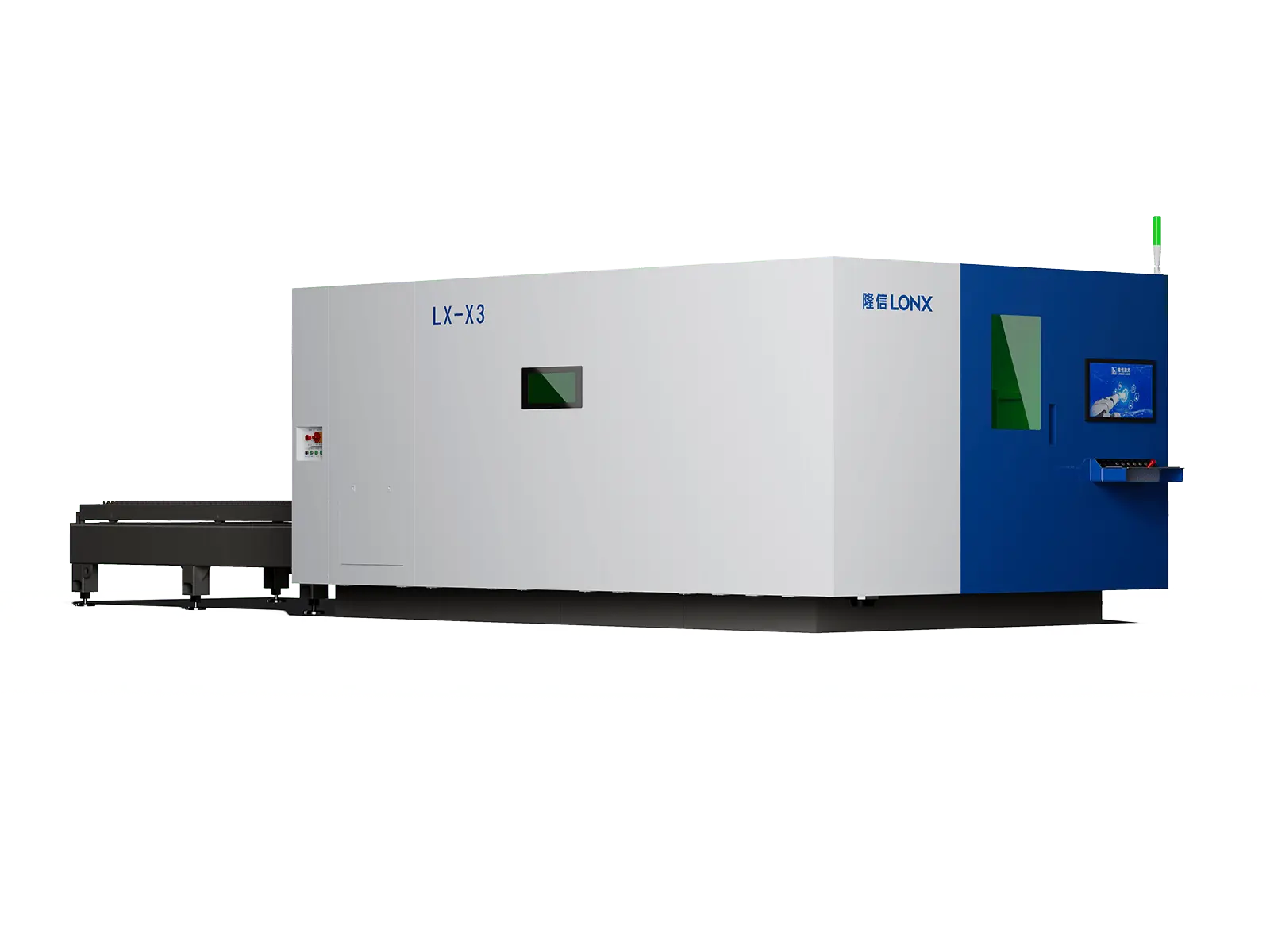

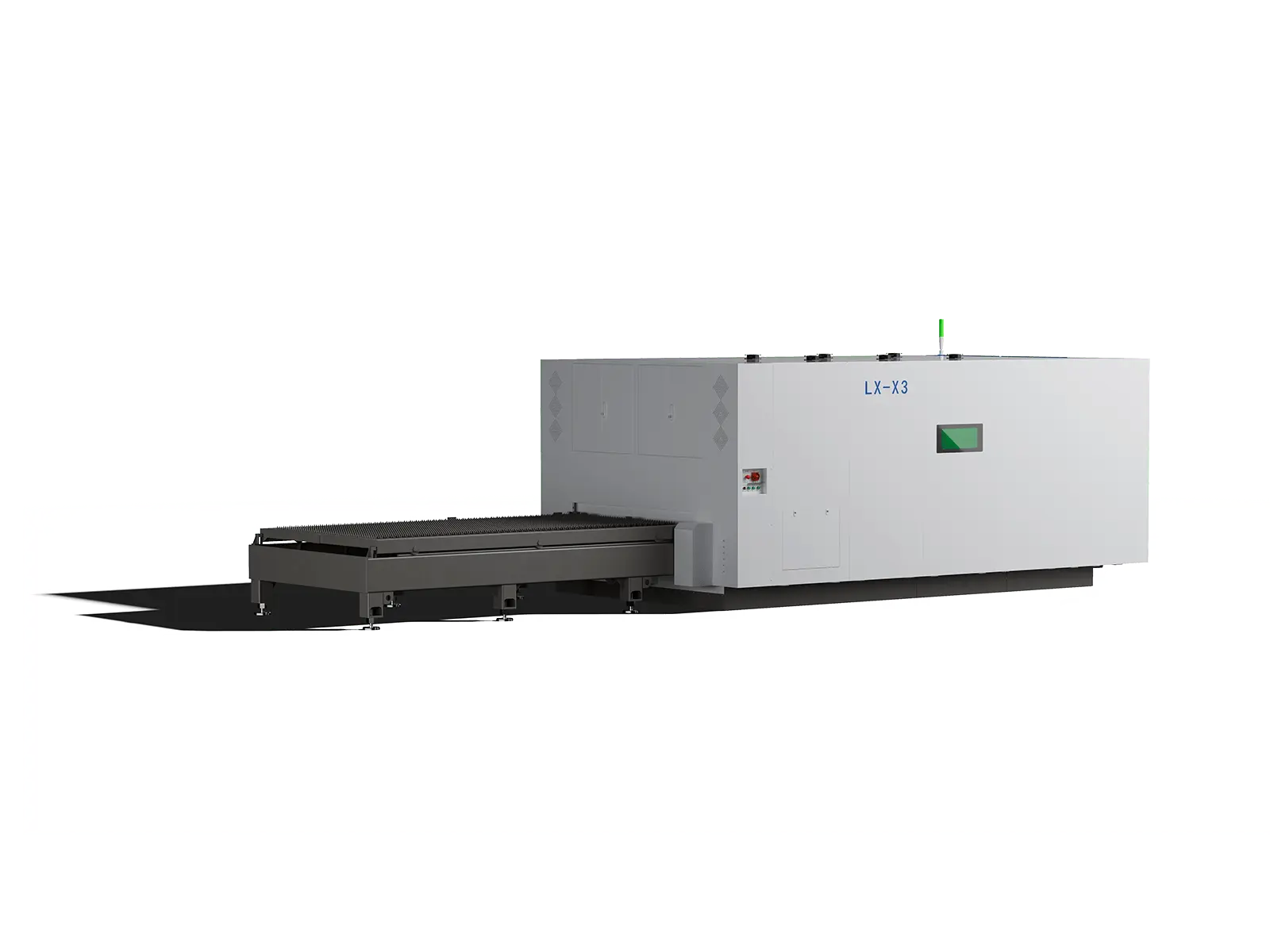

3015 High Speed Exchange Table Fiber Laser Cutting Machine
LX-X3
Laser Power
1.5kW-20kW
Working Area
1600 × 3200 mm (5 × 10 ft)
Working Speed
140 m/min (459 ft/min)
Acceleration
3.0 G
Product Features
Ultra-Thick Frame-Type Slats
8mm thick frame support increases load-bearing capacity by 80%, perfectly suitable for thick plate cutting. 110mm optimized height effectively avoids cutting damage to the worktable. Integrated slat gauge ensures firm fixation and stable positioning.
Integrated Precision-Machined Bed
Advanced welding technology enhances structural stability by 50% with superior rigidity.1720kg ultra-heavy machine bed for excellent anti-vibration performance.
High load-bearing design enhances thick plate cutting capability by 50%, supporting demanding industrial applications.
High-Strength Aluminum Profile Beam
High-strength aerospace-grade aluminum beam, integrally machined and heat-treated, combines structural rigidity with a lightweight design for higher cutting speed.
Follow-Up Laser Head Protection
Laser head protection minimizes fume impact, extending service life.
Refractory Bricks Compatible Across All Power Options
Standard for full-power operation, the high-density refractory bricks feature 1300℃ high temperature resistance, outstanding impact resistance and anti-slag performance, effectively preventing bed thermal deformation.
Intelligent Cutting System
The Intelligent Cutting System is a high-end solution designed for fiber laser cutting, offering stability, reliability, easy deployment, and excellent performance. It supports modular, customizable, and automated solutions, featuring functions like multi-level perforation for thick plates, intelligent tool retraction for smooth cuts, automatic edge detection for precise positioning, flying cutting for increased speed, and intelligent nesting to reduce material waste. This makes it one of the most advanced and efficient laser cutting systems available.
Cutting Samples
Technical Parameters
| Laser Power | 1.5kW-20kW |
| Working Area | 1600 × 3200 mm5 × 10 ft |
| X-axis Travel | 1630 mm64.17 in |
| Y-axis travel | 3250 mm127.95 in |
| Z-axis Travel | 300 mm11.81 in |
| X/Y-axis positioning accuracy | ±0.03 mm/m±0.00036 in/ft |
| X/Y-axis repeat positioning accuracy | ±0.03 mm/m±0.00036 in/ft |
| Max X/Y Axis Speed | 140 m/min5,512 IPM |
| X/Y-axis acceleration | 3.0 G |
| Weight (auxiliaries excluded) | ≈ 6000 kg≈ 13,228 lb |
| Dimensions (L × W × H) | ≈ 8960*3037*2605 mm (console included)≈ 352.8 × 119.6 × 102.6 in (Console Included) |
| Rated power supply voltage | 380V |
| Frequency | 50Hz |
| Main power protection rating | IP54 |
