Ultra-Large-Format Laser Cutting Machine
LX-A12PROMAX
The LX-A12ProMax gantry-type high-power laser cutting machine is equipped with industry-leading fiber lasers and core transmission components including high-precision rack and pinion and high-accuracy linear guides, guaranteeing superior performance with high cutting speed, ultra-high precision and long-term stable operation. Supported by an advanced CNC system for metal sheet cutting and intelligent nesting software, it enables fully automatic laser cutting. This all-round solution helps customers boost production efficiency, save materials and costs, significantly reduce labor expenses and maximize overall productivity.
Laser Power
12kW-60kW
Working Area
12300 × 3250 mm (40 × 10 ft)
Product Features

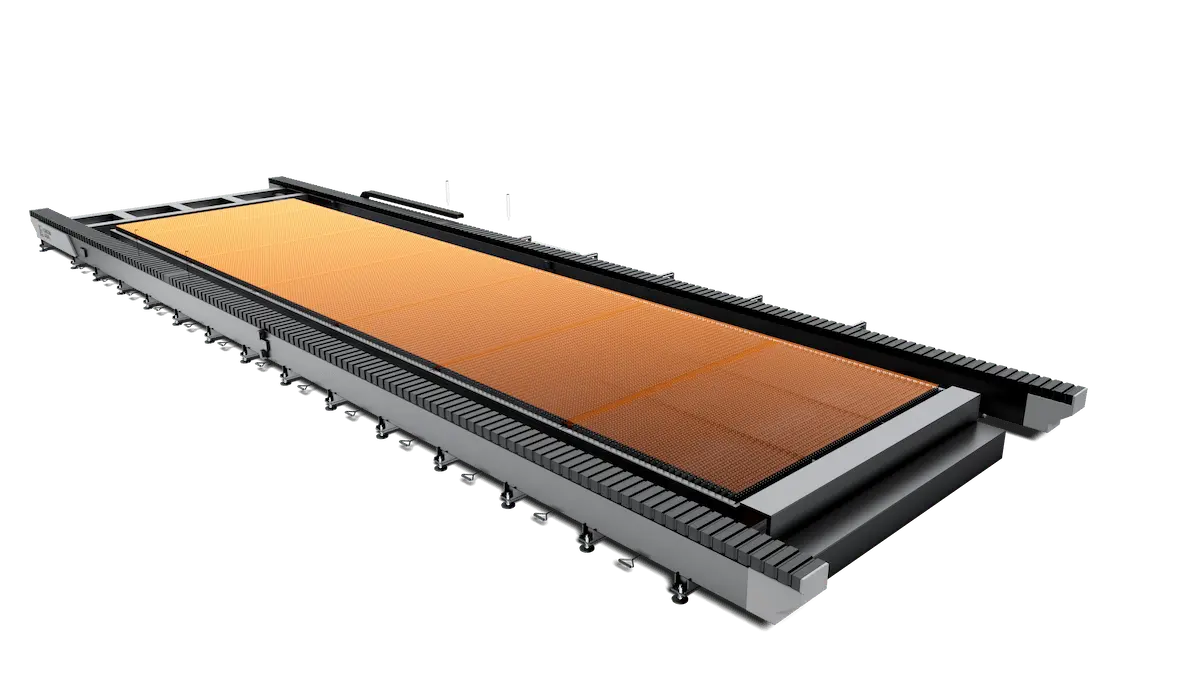

Ultra-Large Format with Flexible Customization
Meets diverse working area requirements with customizable formats on demand.

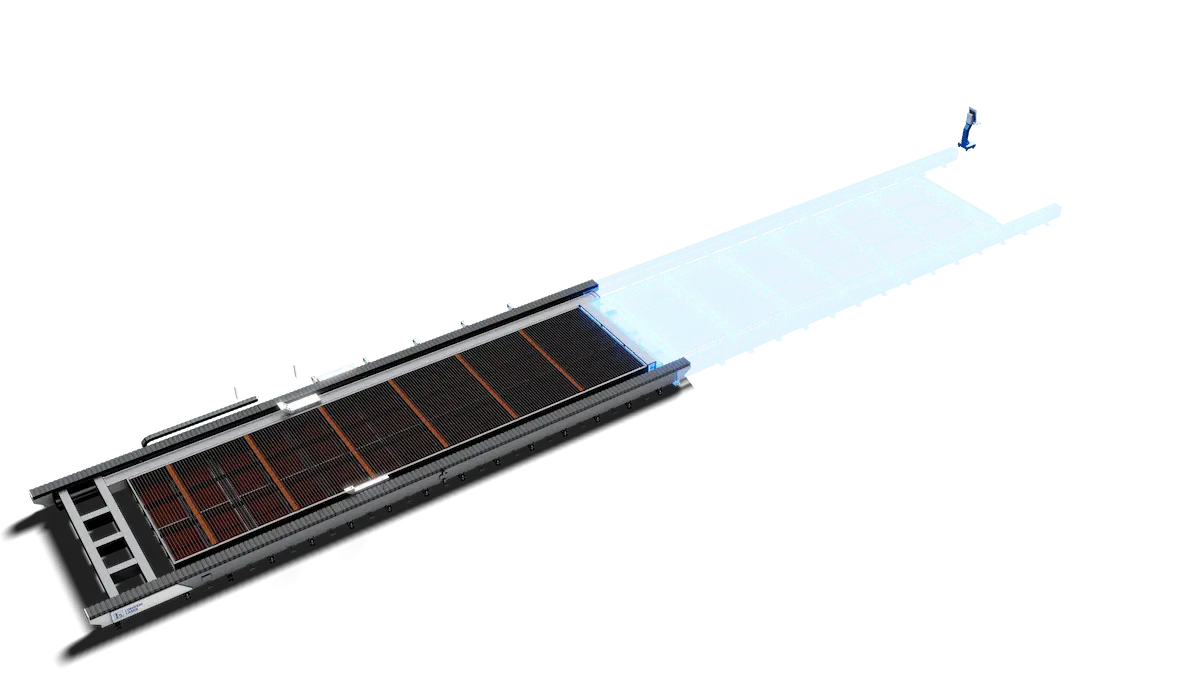

Modular Design for Maximum Expandability
The machine bed and worktable adopt a modular assembly design, enabling scalable working length.

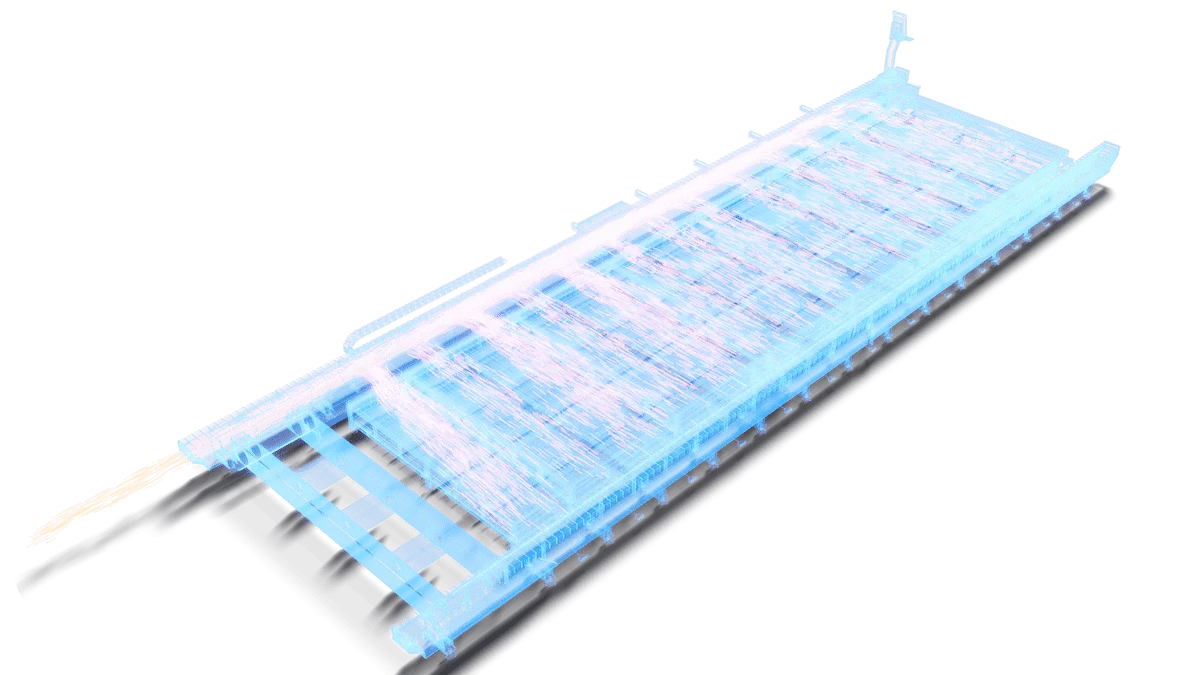

Dynamic Extraction for Immediate Dust Control
The extraction inlet moves synchronously with the cutting head to efficiently capture dust at the point of generation.
Separated Load-Bearing Design for Stable Operation
A separated worktable–machine bed design isolates heat transfer, ensuring machining accuracy and operational stability.

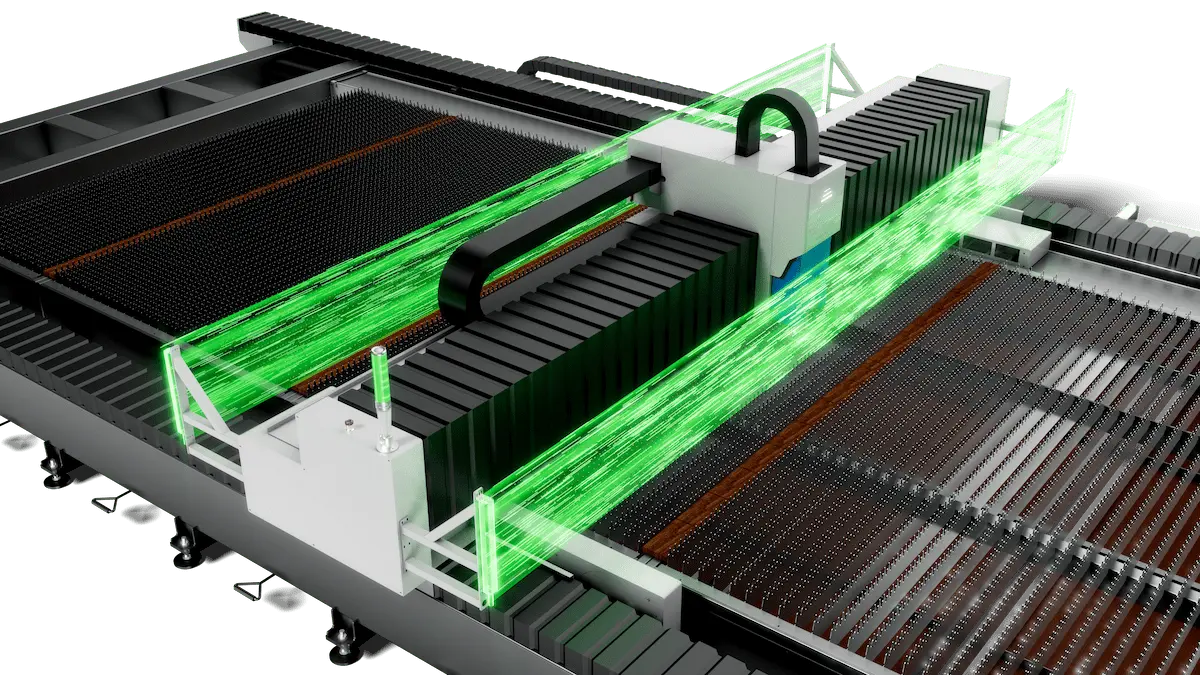

Dual Safety Light Curtains for Intelligent Protection
Real-time detection and early warning provide dual protection for personnel and equipment.
Bevel Cutting with Flexible Configuration
Supports optional bevel cutting and laser protection for the crossbeam, meeting diverse processing requirements.
Cutting Samples
Technical Parameters
| Laser Power | 12kW-60kW |
| Working Area | 12300 × 3250 mm40 × 10 ft |
| X-axis Travel | 3250 mm127.95 in |
| Y-axis travel | 12300 mm484.25 in |
| Z-axis Travel | 150 mm5.91 in |
| X/Y-axis positioning accuracy | ±0.03 mm/m±0.00036 in/ft |
| X/Y-axis repeat positioning accuracy | ±0.03 mm/m±0.00036 in/ft |
| Max X/Y Axis Speed | 50 m/min1,969 IPM |
| X/Y-axis acceleration | 0.5 G |
| Weight (auxiliaries excluded) | ≈ 5300kg (worktable excluded)≈ 11,684 lb (worktable excluded) |
| Dimensions (L × W × H) | ≈ 17150*5500*2500mm (console included)≈ 675.20 × 216.54 × 98.43 in (console included) |
| Rated power supply voltage | 380V |
| Frequency | 50Hz |
| Main power protection rating | IP54 |
