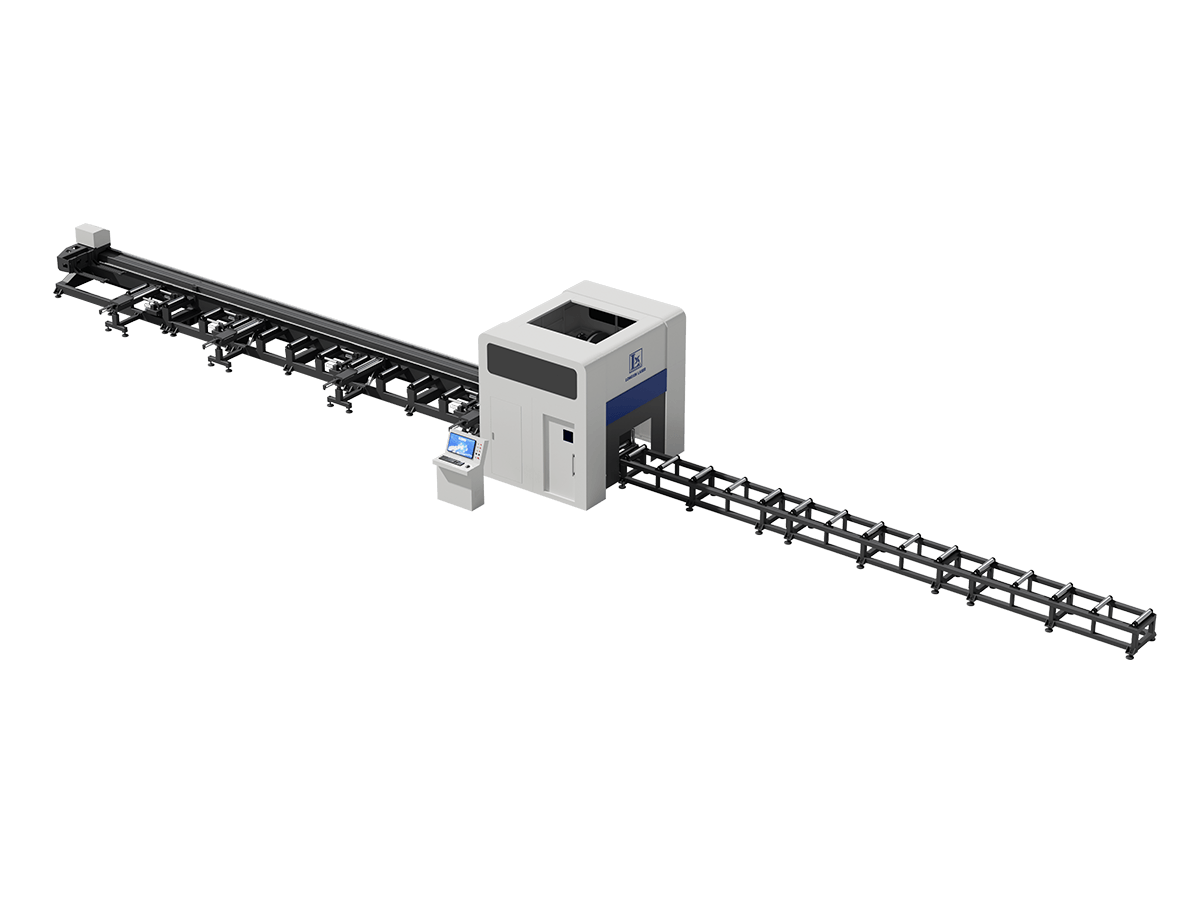

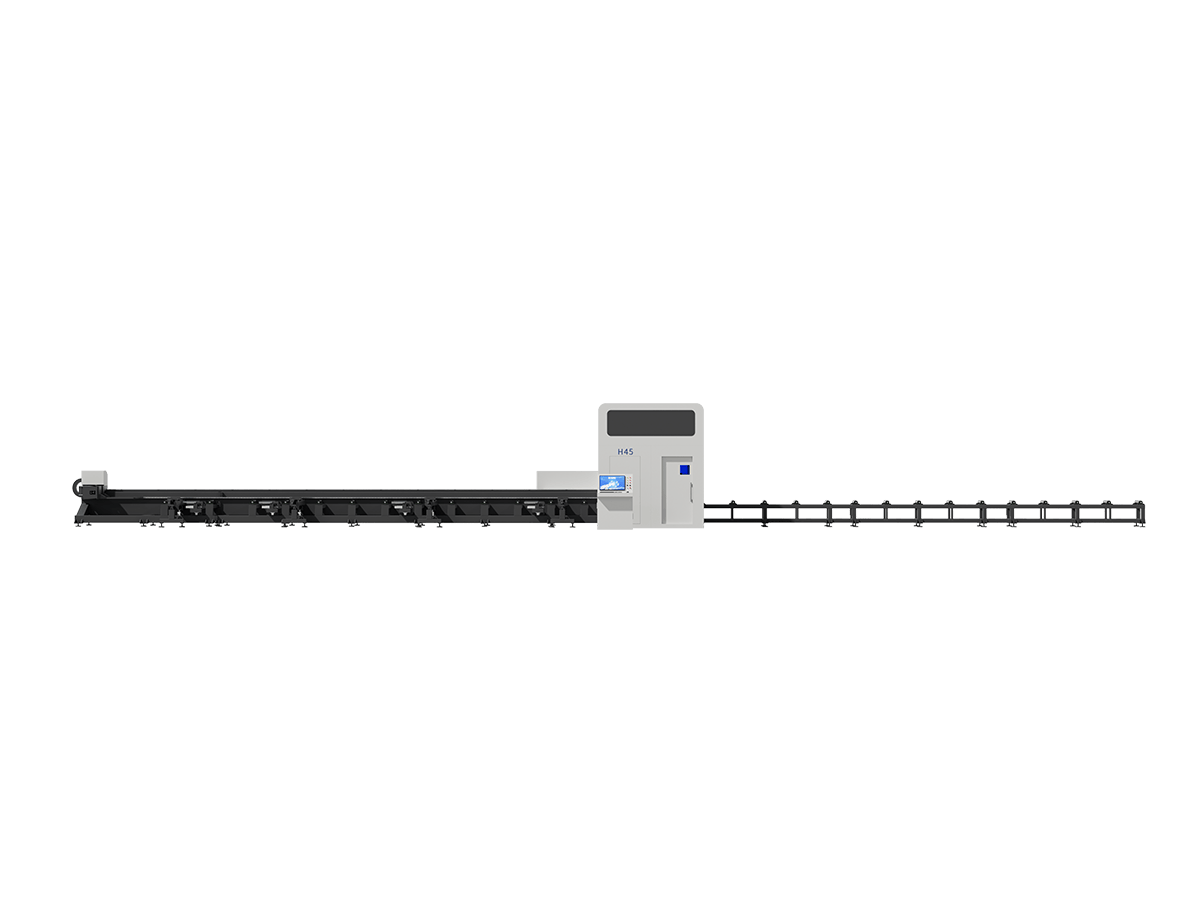

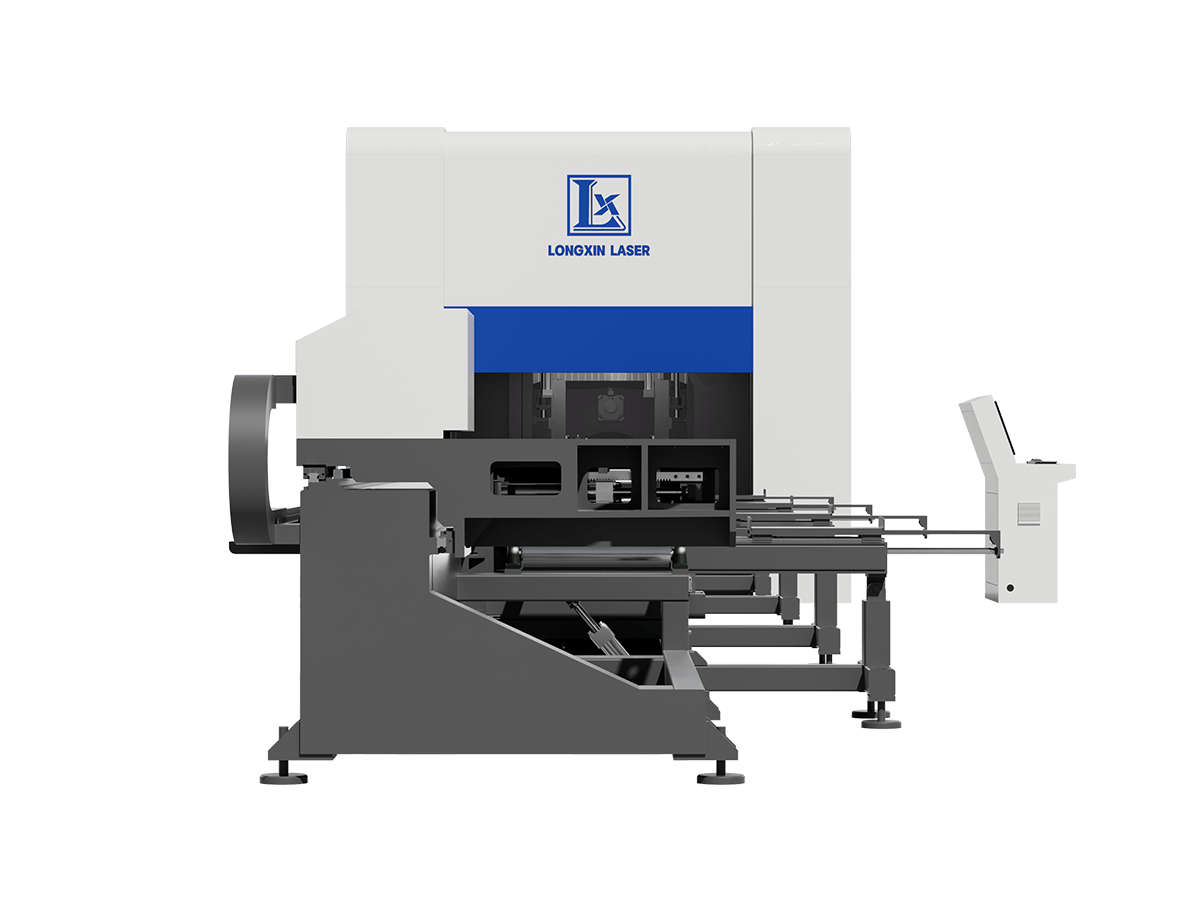

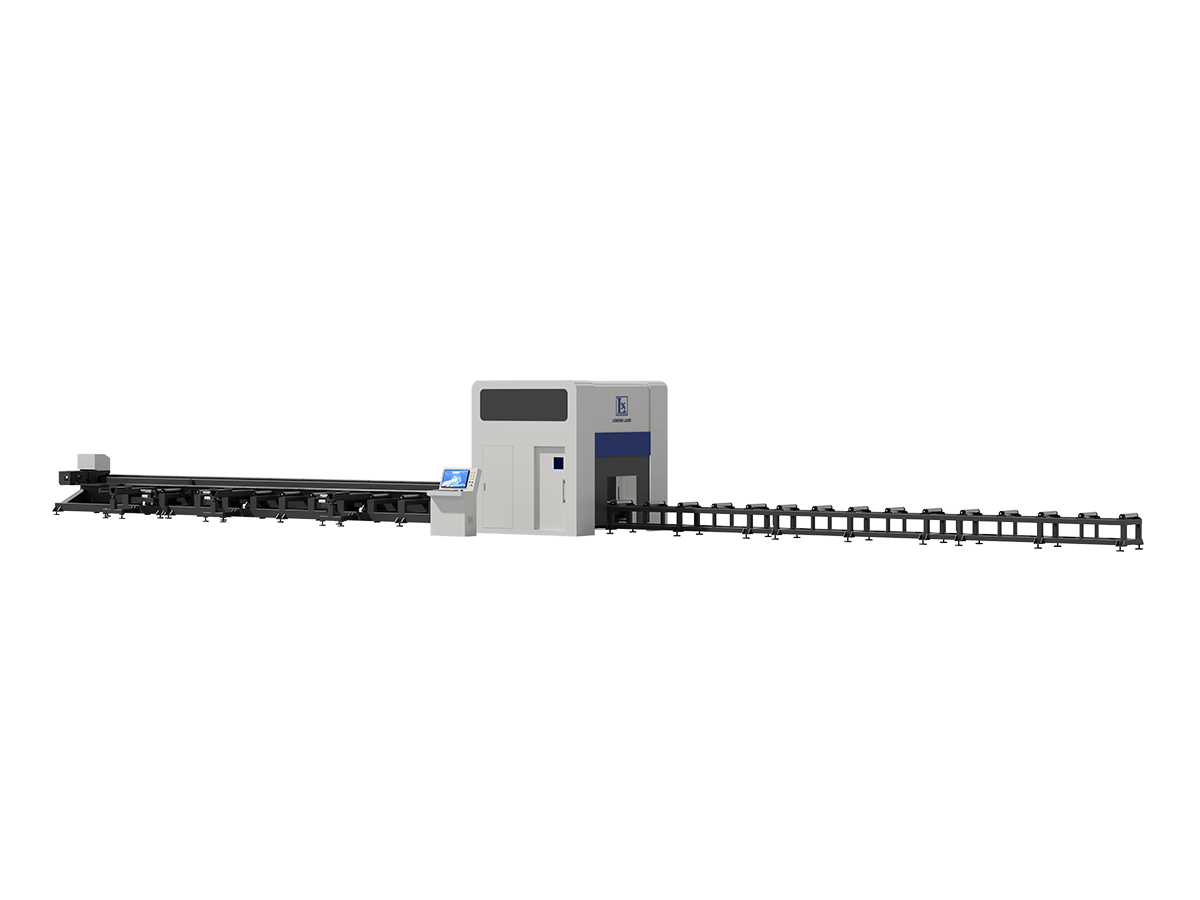

CNC H-Beam & I-Beam Laser Cutting Machine for Structural Steel Profiles
LX-H45
- Five-in-one profile cutting production line, high-precision machinery, photoelectric detection, three-dimensional five-axis RTCP function, intelligent software algorithm, integrating optical, mechanical, electrical and software
- Fully automatic processing production line, automatic recognition of steel structure TEKLA digital model
- Directly input parameters according to two-dimensional and three-dimensional paper drawings to generate three-dimensional models (SIP, IGS, etc.)
- Cutting profiles: H steel/C type/L type/bevel pipe
- Application industries: steel structure, shipbuilding, elevators, heavy industry, engineering machinery, pressure vessels and other market segments
Product Features
3D 5-axis cutting
It can cut H-beams, C-beams, L-beams, as well as large area carbon steel corner plates.
Super heavy profile processing
It can satisfy processing requirements such as hole cutting, cutting, and corner cutting.
Intelligent CNC system specifically designed for pipe cutting
The system features a visual operation screen, easy parameter adjustments, and a wide range of functions. It supports multi-level perforation, intelligent tool retraction, automatic edge detection, and intelligent nesting, among other customizable features.
Technical Parameters
- Model:
- Laser power:
- Cutting Diameter Of Round Tube:
- Cutting Diameter Of Square Tube:
- Cutting Tube length:
- Accuracy Of Processing:
- Dimensions:
- Weight:
- Cutting Tube Type:
- Cutting Material:
Cutting Samples
