6025 Large Format Dual Table Laser Cutting Machine
LX-L6MAX
Laser Power
1.5kW-20kW
Working Area
2530 × 6050 mm (8 × 20 ft)
Product Features

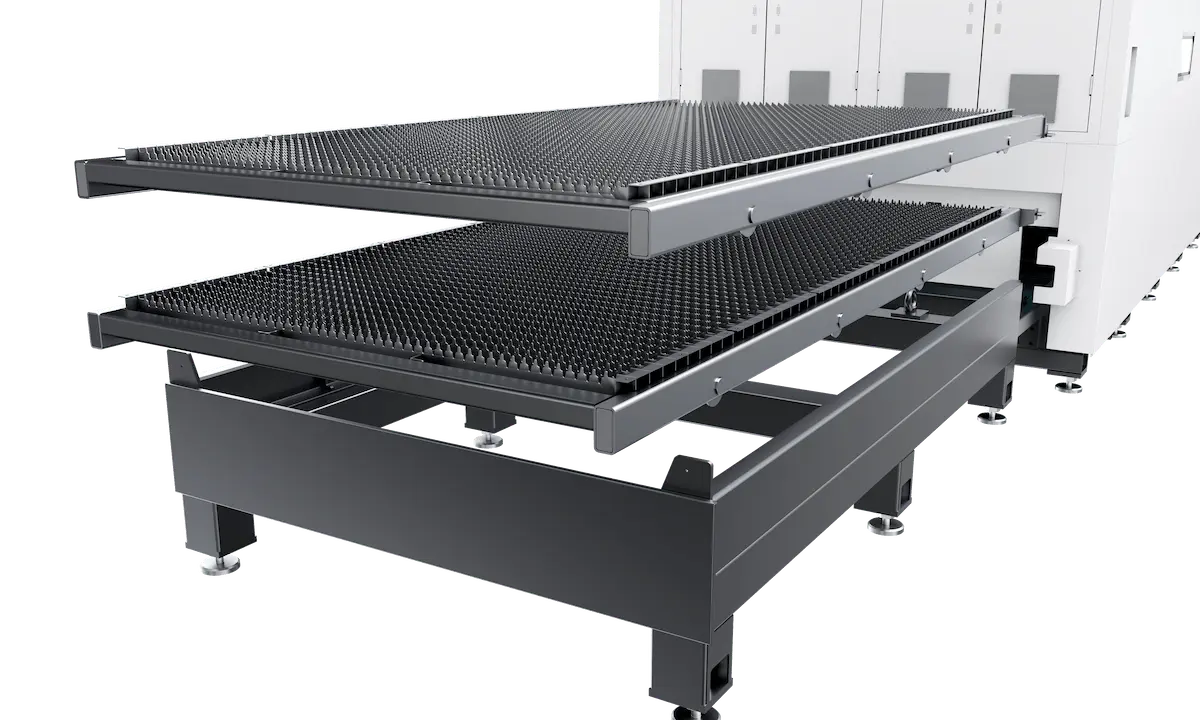

Ultra-Thick Frame-Type Slats
Features an 8 mm ultra-thick frame-type slat design for heavy-load capacity.
Integrated Precision-Machined Bed
Integrated precision-machined bed, treated with multiple aging processes to ensure stable operation.

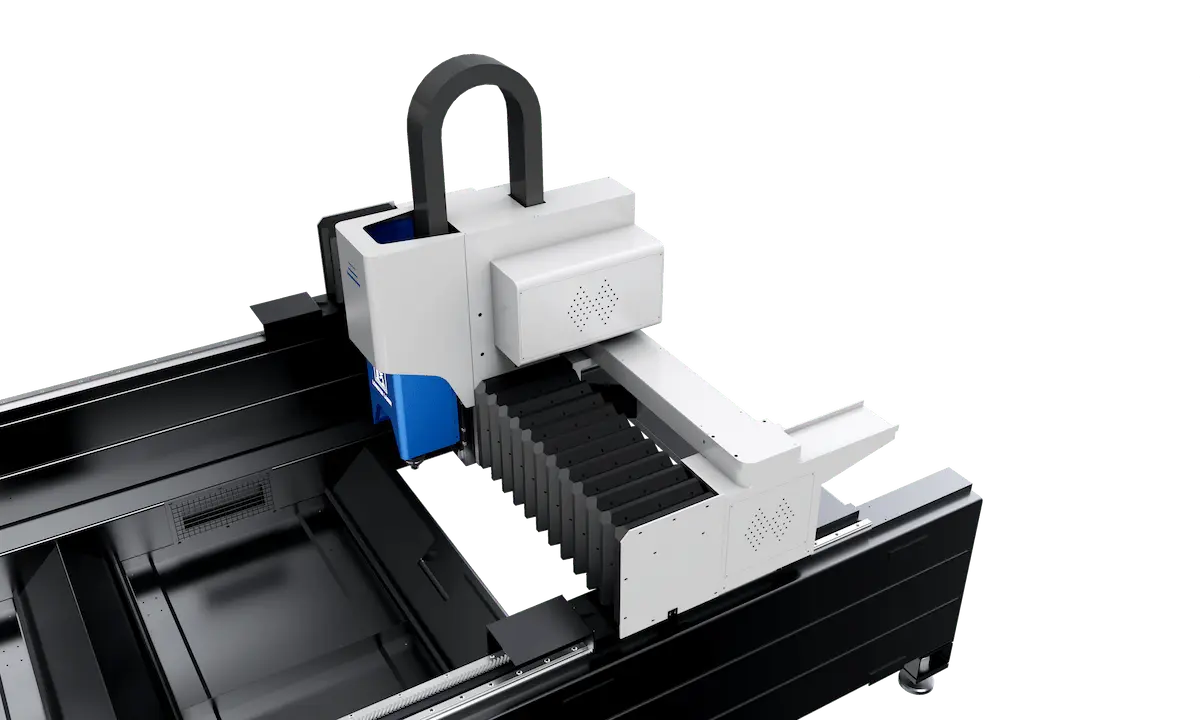

High-Strength Aluminum Profile Beam
High-strength aerospace-grade aluminum beam, integrally machined and heat-treated, combines structural rigidity with a lightweight design for higher cutting speed.

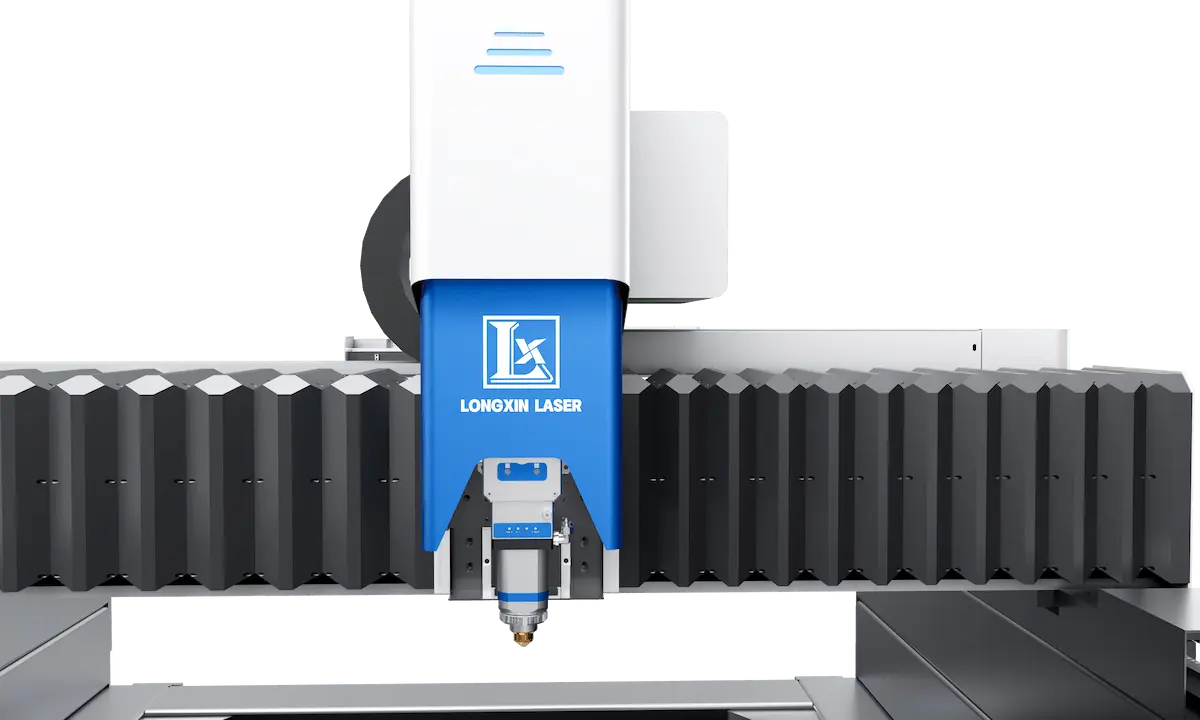

Follow-Up Laser Head Protection
Laser head protection minimizes fume impact, extending service life.
Refractory Bricks Compatible Across All Power Options
All power options are equipped with molded refractory bricks, ensuring effective thermal insulation and machine bed stability
Intelligent Cutting System
The Intelligent Cutting System is a high-end solution designed for fiber laser cutting, offering stability, reliability, easy deployment, and excellent performance. It supports modular, customizable, and automated solutions, featuring functions like multi-level perforation for thick plates, intelligent tool retraction for smooth cuts, automatic edge detection for precise positioning, flying cutting for increased speed, and intelligent nesting to reduce material waste. This makes it one of the most advanced and efficient laser cutting systems available.
Cutting Samples
Technical Parameters
| Laser Power | 1.5kW-20kW |
| Working Area | 2530 × 6050 mm8 × 20 ft |
| X-axis Travel | 2530 mm99.61 in |
| Y-axis travel | 6050 mm238.19 in |
| Z-axis Travel | 300 mm11.81 in |
| X/Y-axis positioning accuracy | ±0.03 mm/m±0.00036 in/ft |
| X/Y-axis repeat positioning accuracy | ±0.03 mm/m±0.00036 in/ft |
| Max X/Y Axis Speed | 200 m/min7,874 IPM |
| X/Y-axis acceleration | 2.0 G |
| Weight (auxiliaries excluded) | ≈ 9900 kg≈ 21,826 lb |
| Dimensions (L × W × H) | ≈ 14800*3750*2242 mm (console included)≈ 582.68 × 147.64 × 88.27 in (console included) |
| Rated power supply voltage | 380V |
| Frequency | 50Hz |
| Main power protection rating | IP54 |
