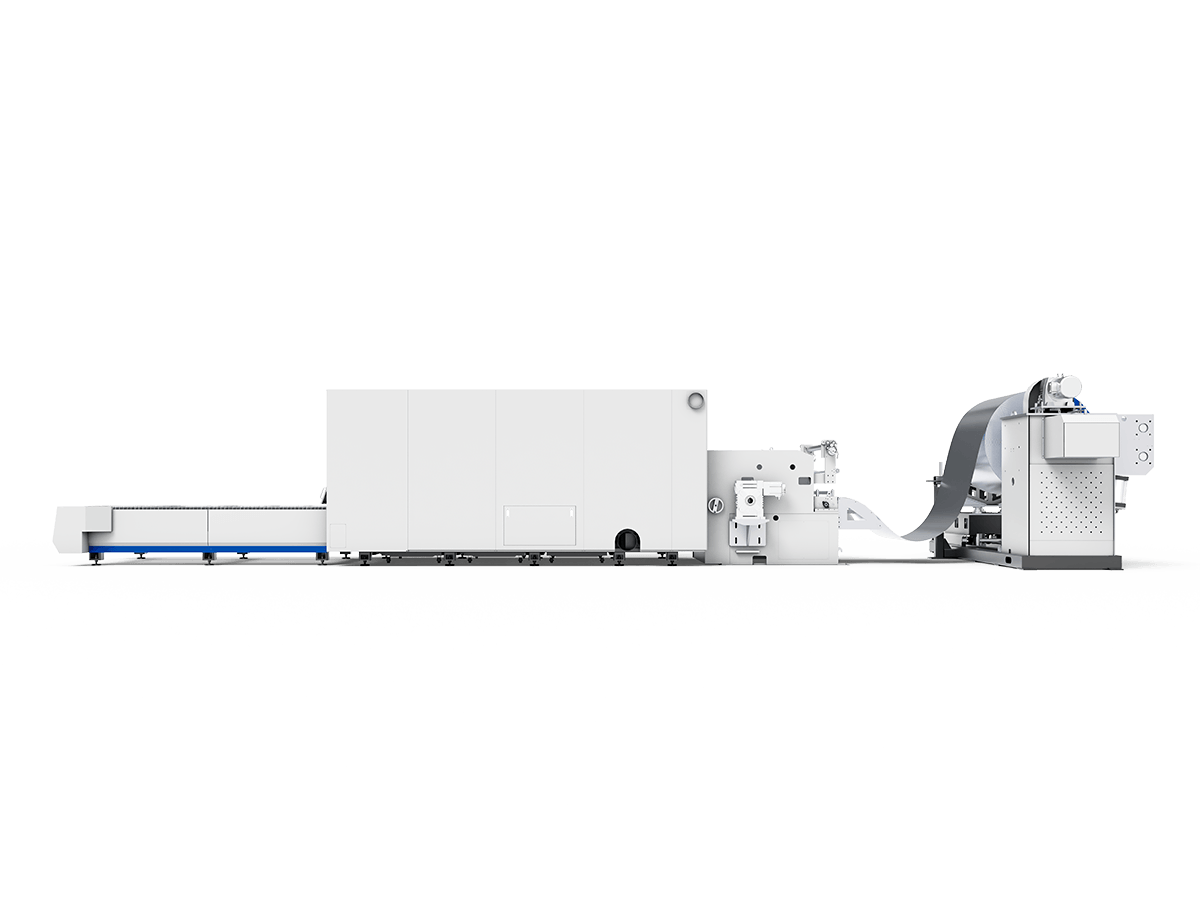

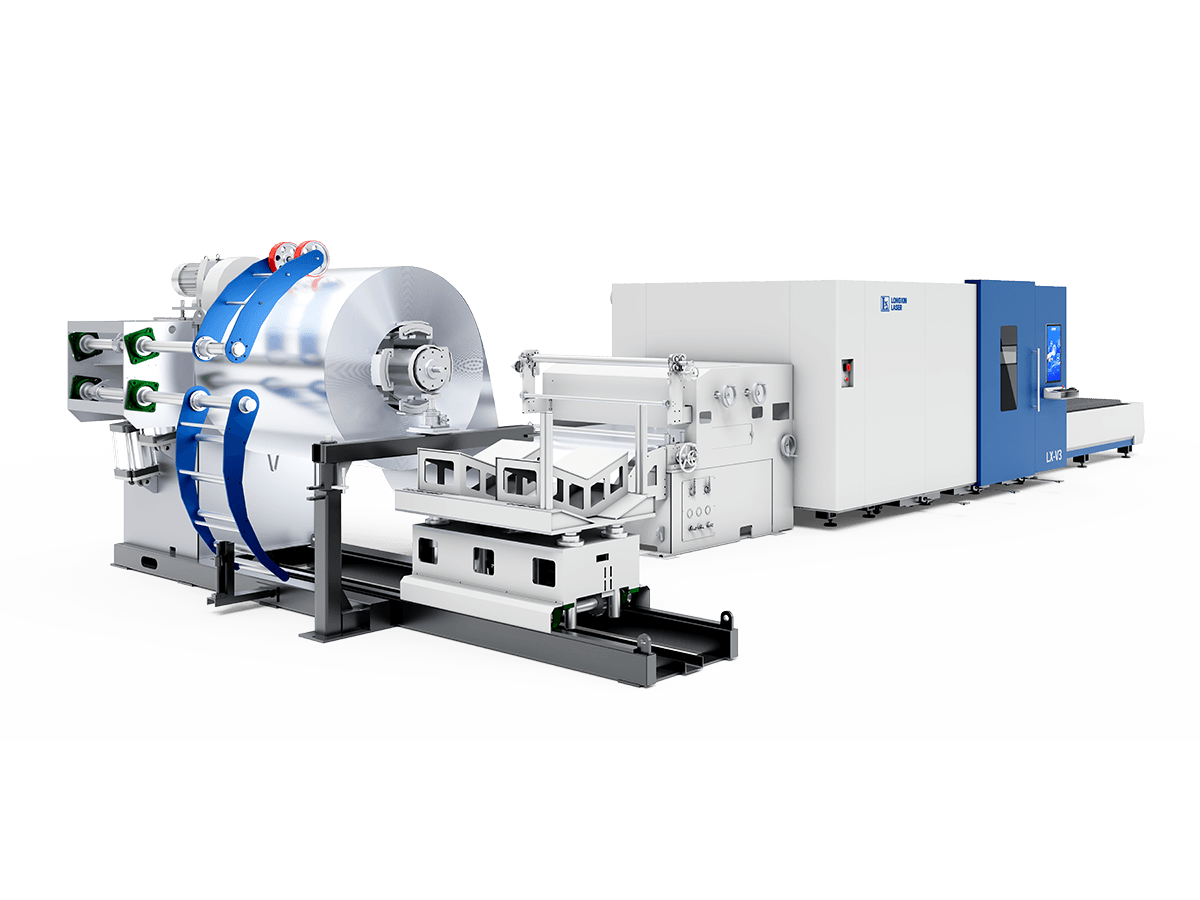

Material Coiling Laser Cutting Machine
LX-V3

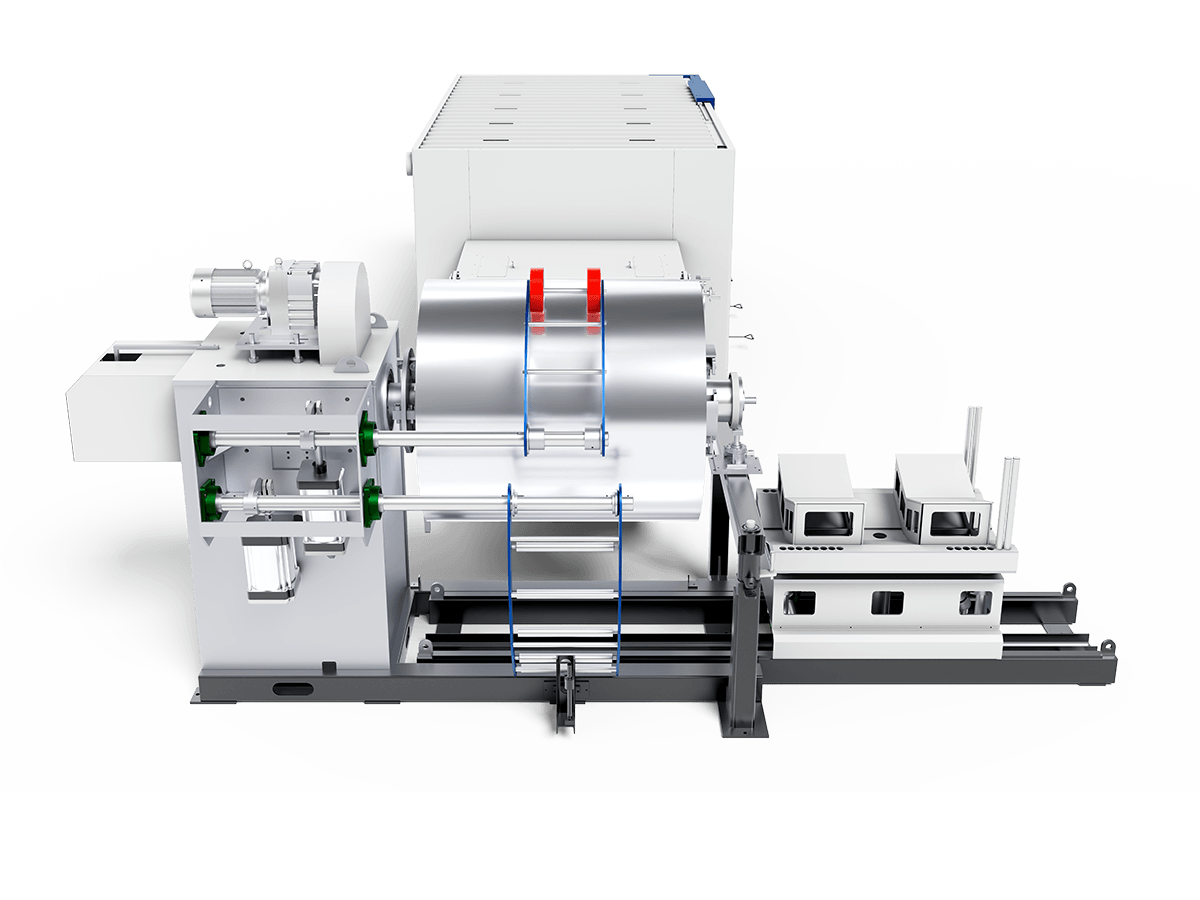

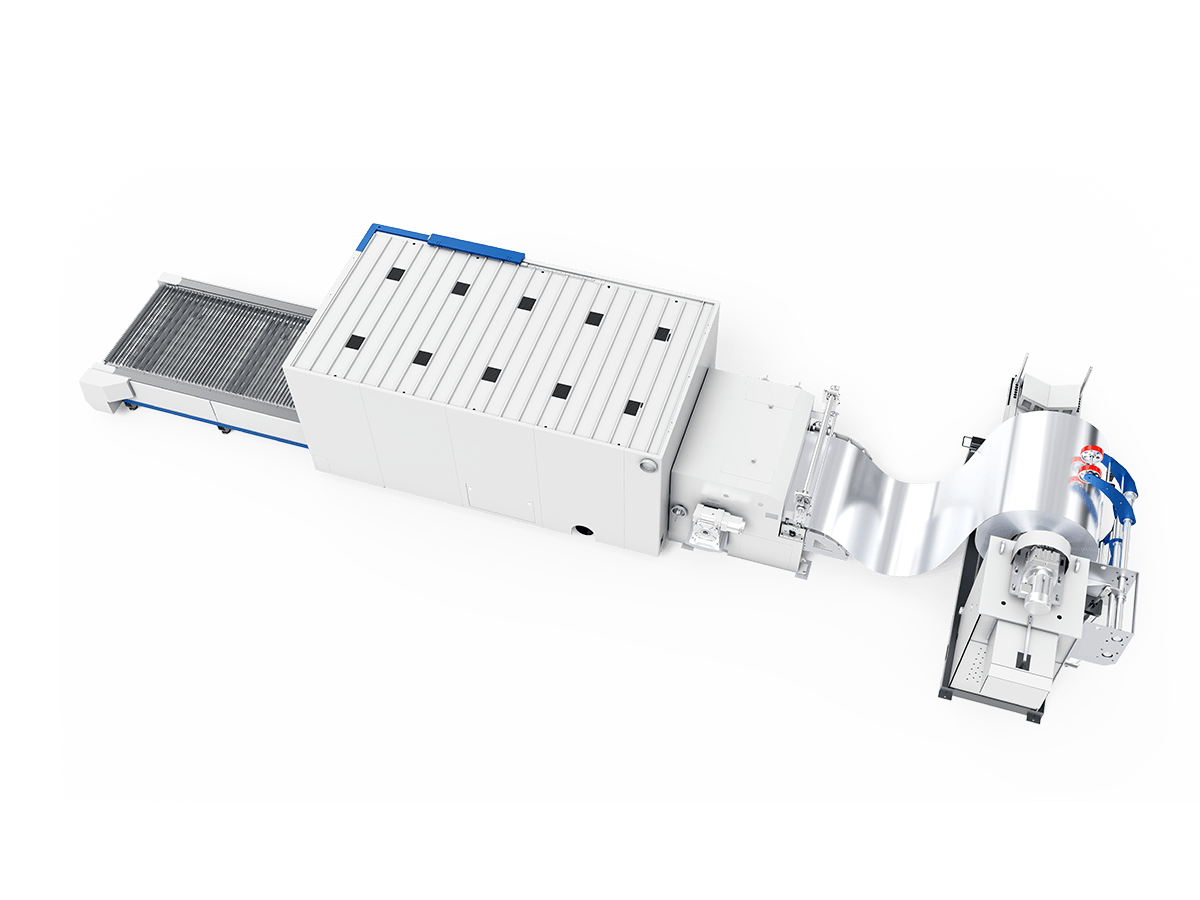

- 4-in-1 integration of decoiling, leveling, cutting, and unloading for maximum efficiency
- Standard auxiliary sorting system for automatic material arrangement
- Ergonomic side-opening door for real-time process visibility
- Standard loading trolley for easy, labor-saving material feeding
Laser Power
1500W-3000W
Working Area
3050 × 1530 mm (5 × 10 ft)
Product Features

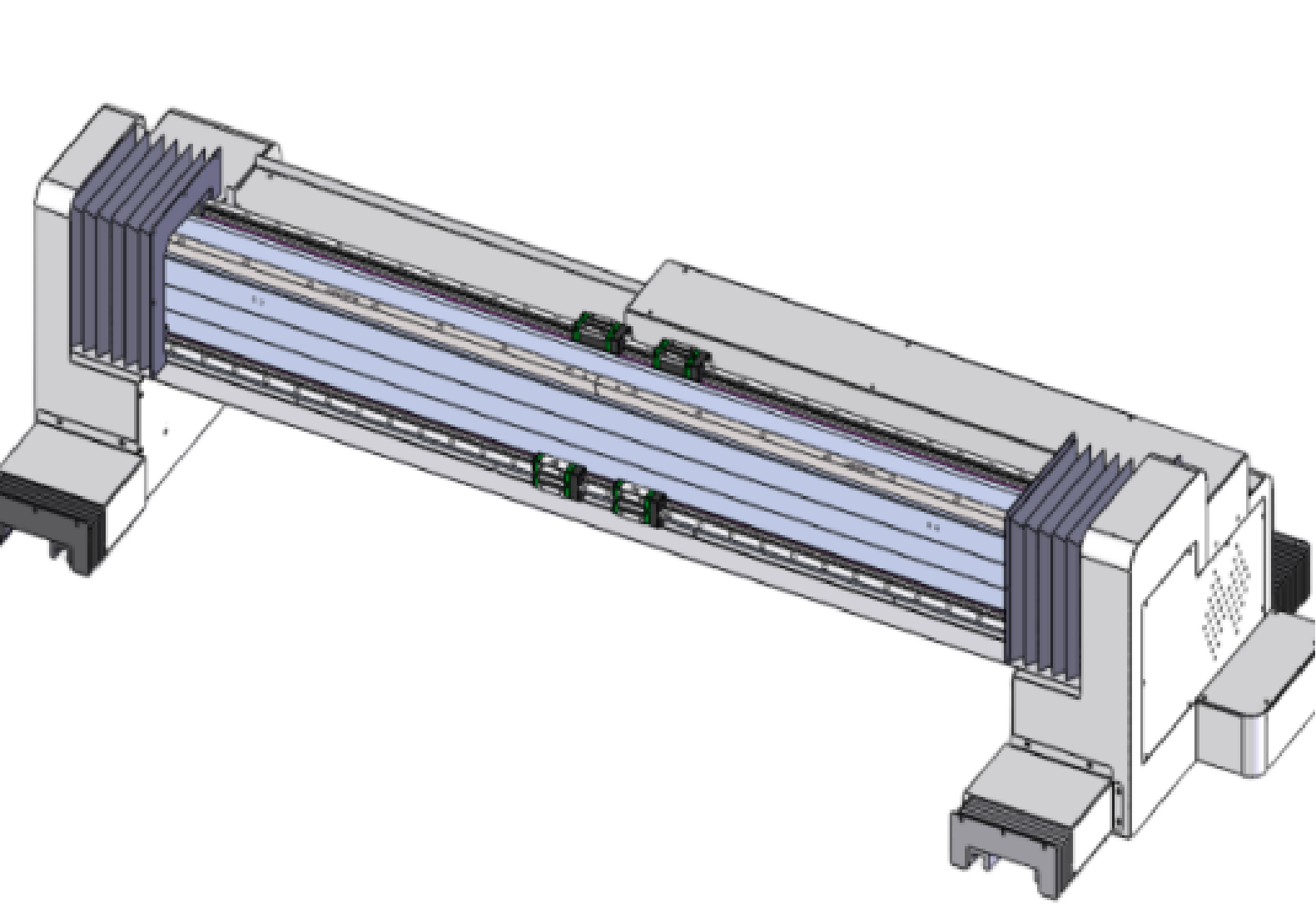

Ultra-High Pressure Extruded Aluminum Beam
Sunflower-shaped crossbeam section with strong deformation resistance.
8 mm wall thickness for superior structural performance.

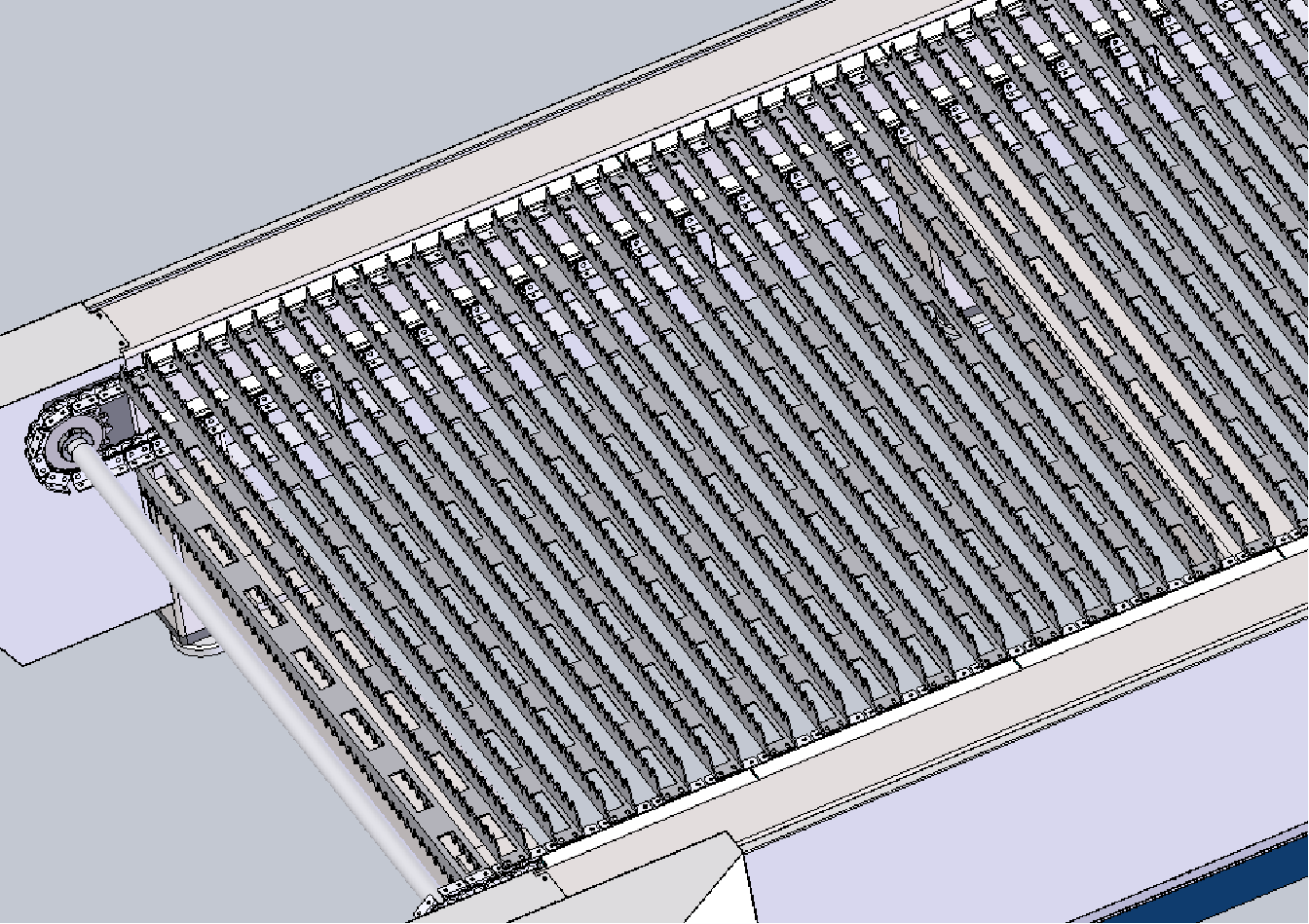

Follow-Up Rotary Worktable
Effectively prevent surface scratches on metal sheets.
Reinforced slat frame for improved burn resistance.

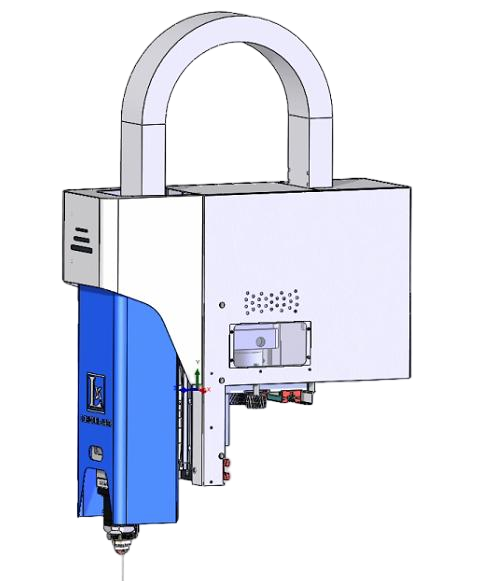

Follow-Up Laser Head Protection
Synchronizes with the laser head for full-range protection.
Optional zero-distance dust extraction for cleaner, eco-friendly operation.

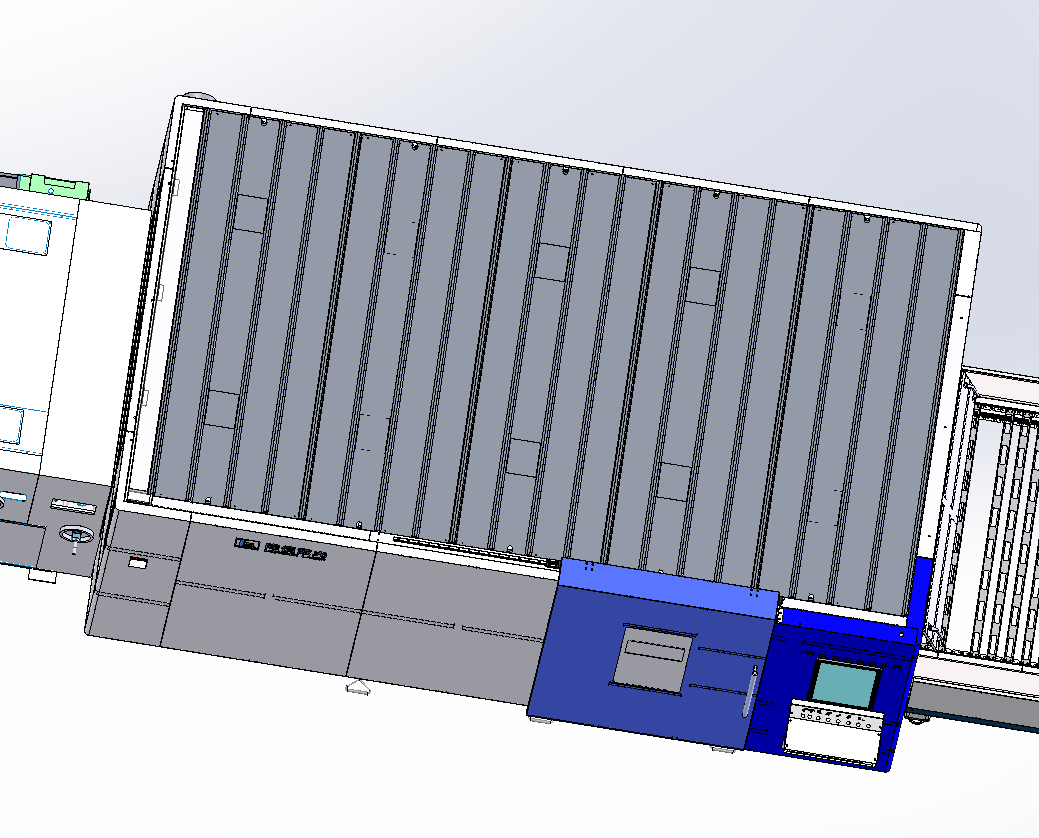

Positive Pressure Air Blowing
Standard top-mounted positive pressure airflow, using coordinated blowing and extraction for effective fume and dust control.
Cutting Samples
Technical Parameters
| Laser Power | 1.5kW-3kW |
| Working Area | 3050 × 1530 mm5 × 10 ft |
| X-axis Travel | 1530 mm60.24 in |
| Y-axis travel | 3050 mm120.08 in |
| Z-axis Travel | 300 mm11.81 in |
| X/Y-axis positioning accuracy | ±0.03 mm/m±0.00036 in/ft |
| X/Y-axis repeat positioning accuracy | ±0.03 mm/m±0.00036 in/ft |
| Max X/Y Axis Speed | 120 m/min4,724 IPM |
| X/Y-axis acceleration | 1.0 G |
| Weight (auxiliaries excluded) | ≈ 4000 kg≈ 8,818 lb |
| Dimensions (L × W × H) | ≈ 14500*3000*2450 mm≈ 570.87 × 118.11 × 96.46 in |
| Rated power supply voltage | 380V |
| Frequency | 50Hz |
| Main power protection rating | IP54 |
